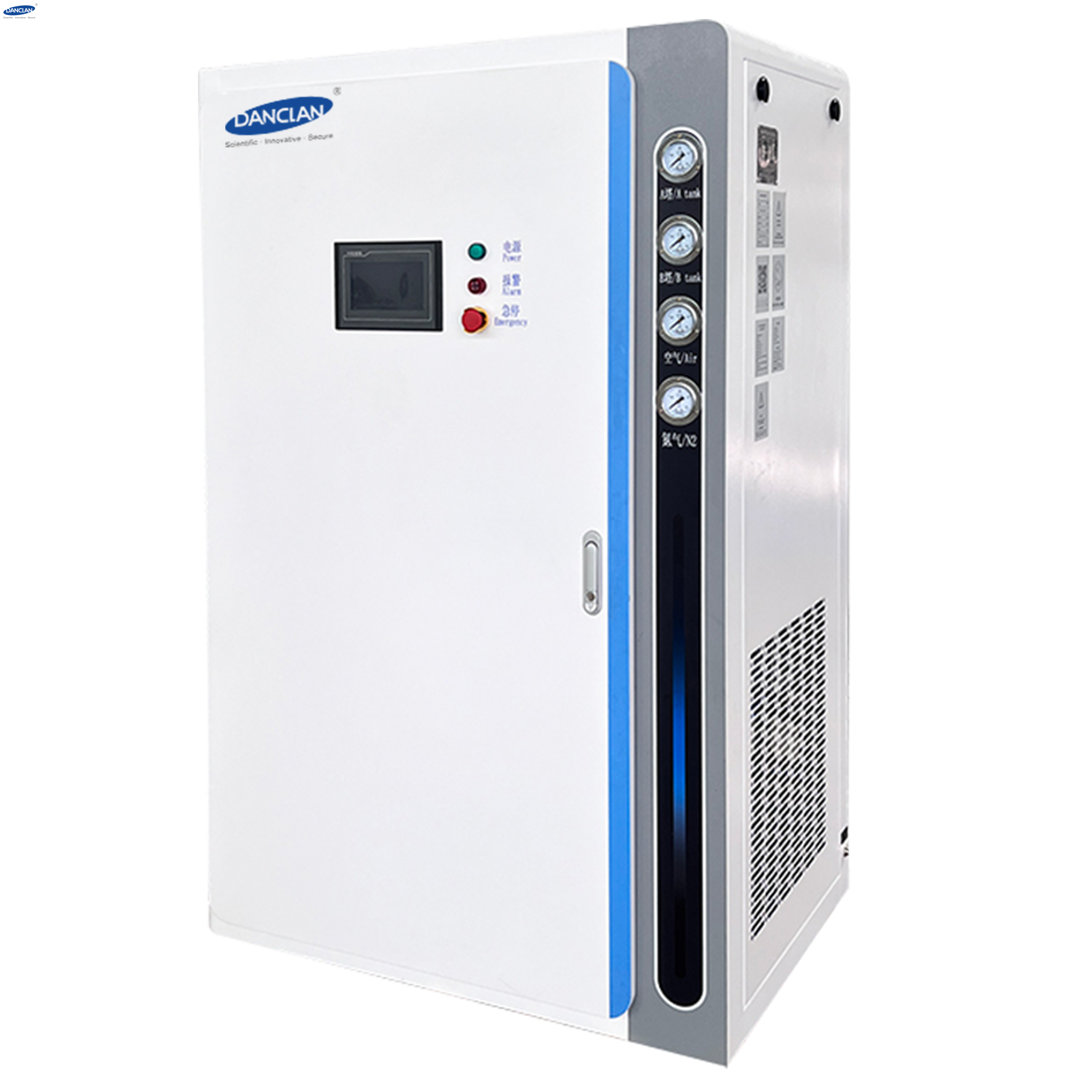

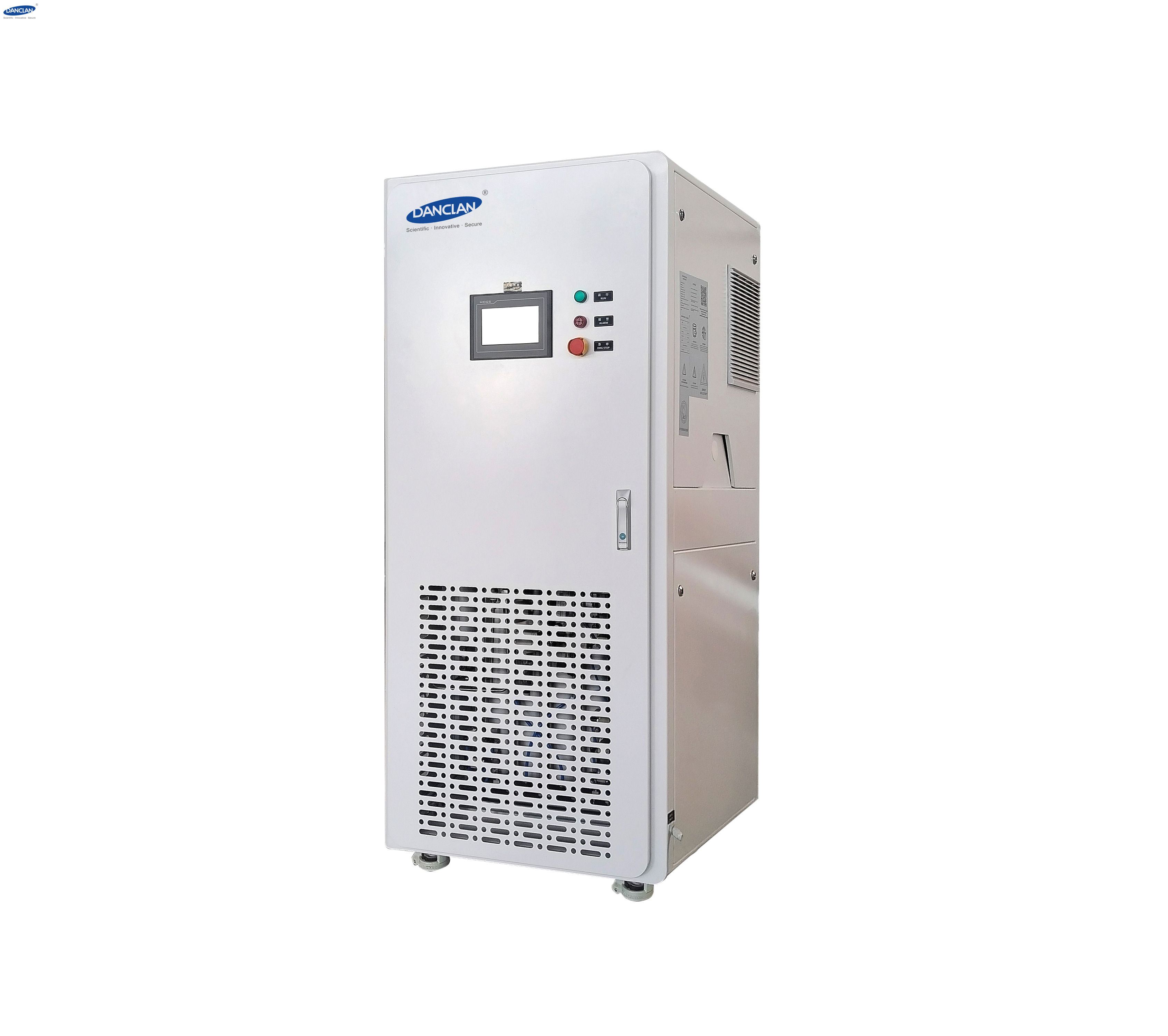

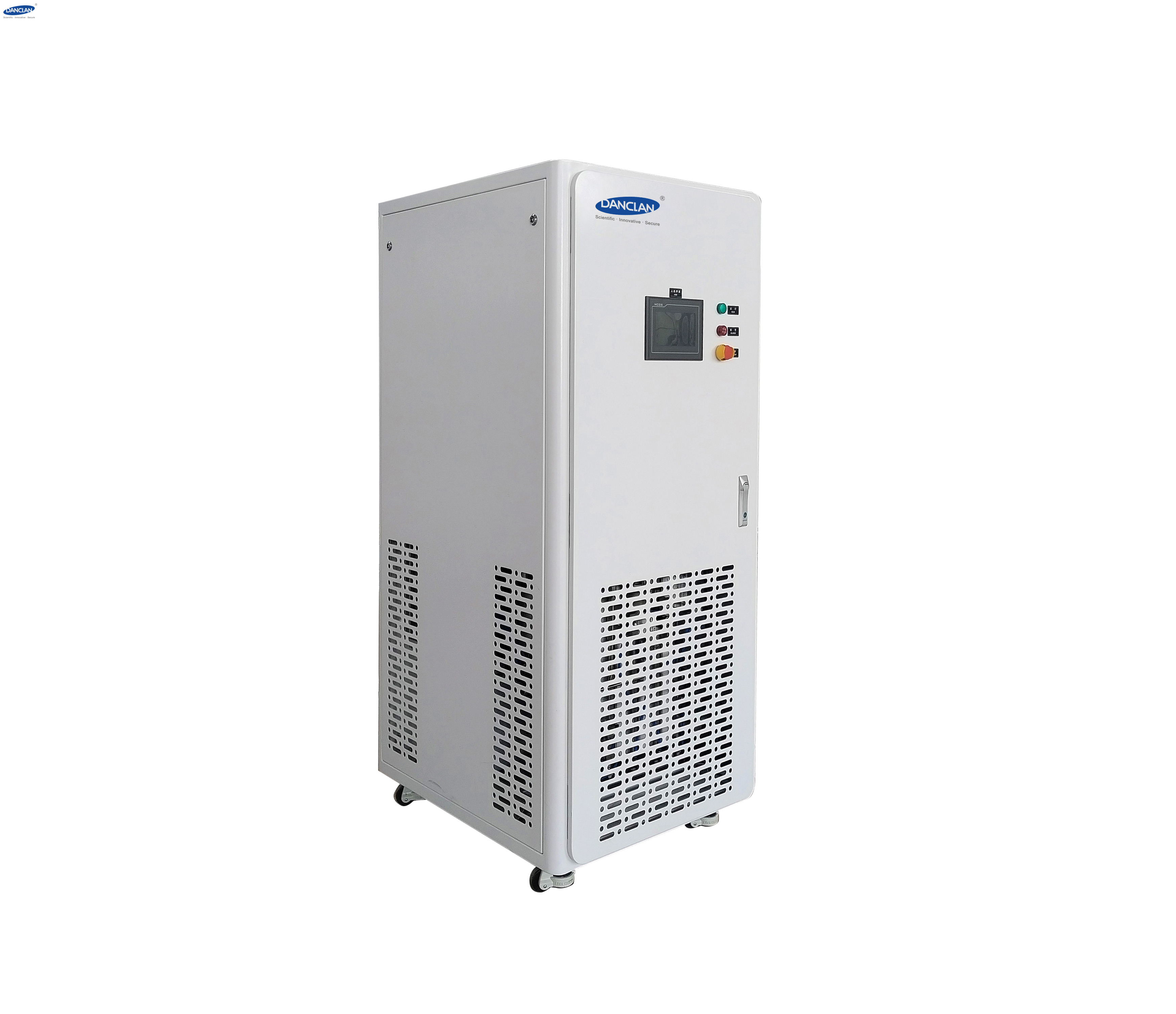

DLN Series Liquid Nitrogen Generator

Product Description

Danclan small liquid nitrogen machine is a plug-in liquid nitrogen solution. Using the mixed refrigerant refrigeration mrjt process, based on the regenerative multi-component mixed refrigerant throttling refrigeration cycle, from the ambient temperature to the target refrigeration temperature, select the high, medium and low boiling point pure substance components to form the multi-component mixed refrigerant, so as to realize the relay matching of the effective refrigeration temperature range of each boiling point component.It is a refrigerator that can efficiently achieve the temperature range of -40~196℃.

Product Features

◎Liquid nitrogen output:10L-20Lper day

◎Regular start and stop:you can freely set the daily startup and shutdown time

◎Liquid level start and stop:if equipped with liquid nitrogen tank with liquid level gauge,the start and stop can be controlled according to the liquid level,and the liquid level is displayed

◎Remote monitoring: MCGS remote monitoring ,remote downloading of historical operation records,online program upgrading,convenient for remote maintenance

◎Fully enclosed box type compact design

◎Liquid nitrogen dewar bottle (optional)

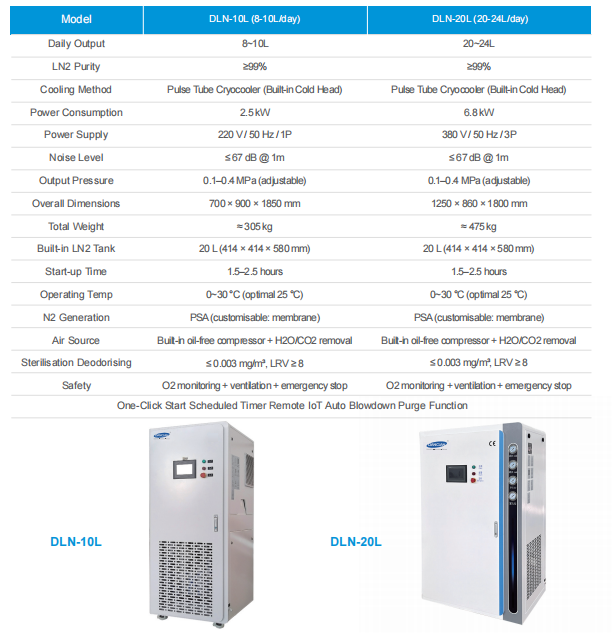

Technical Parameters
