DTGZ-2000/3000/6000/12000
Danclan

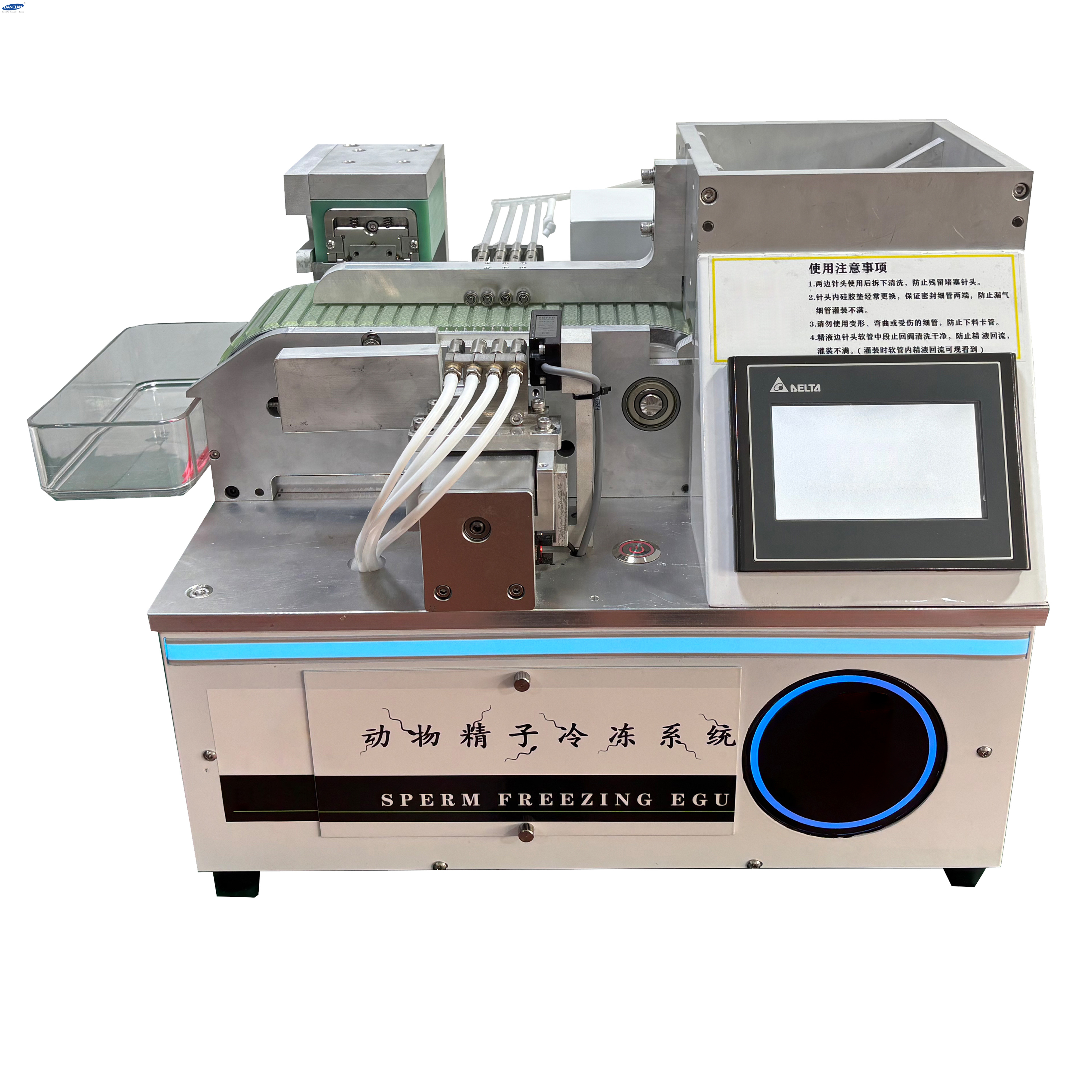

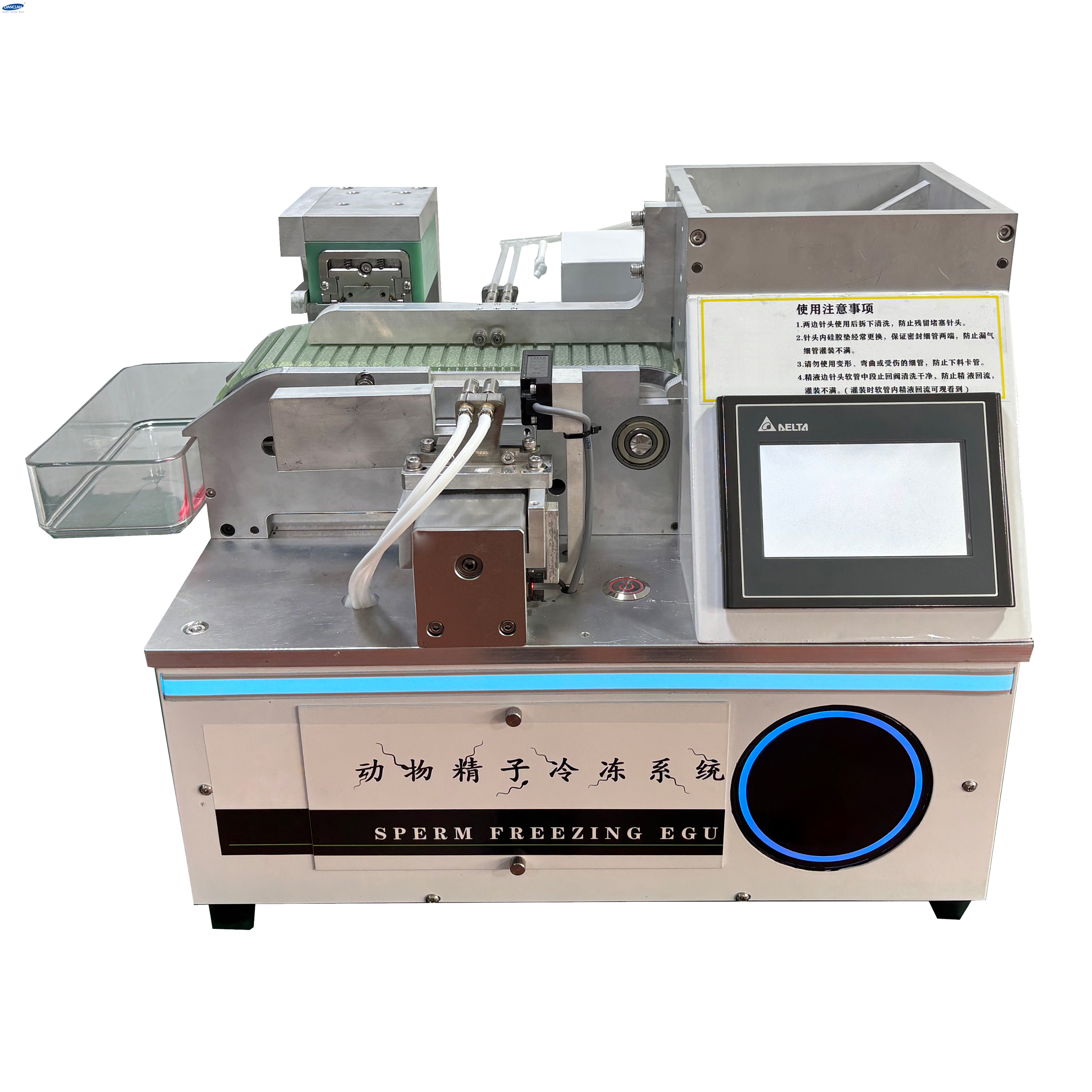

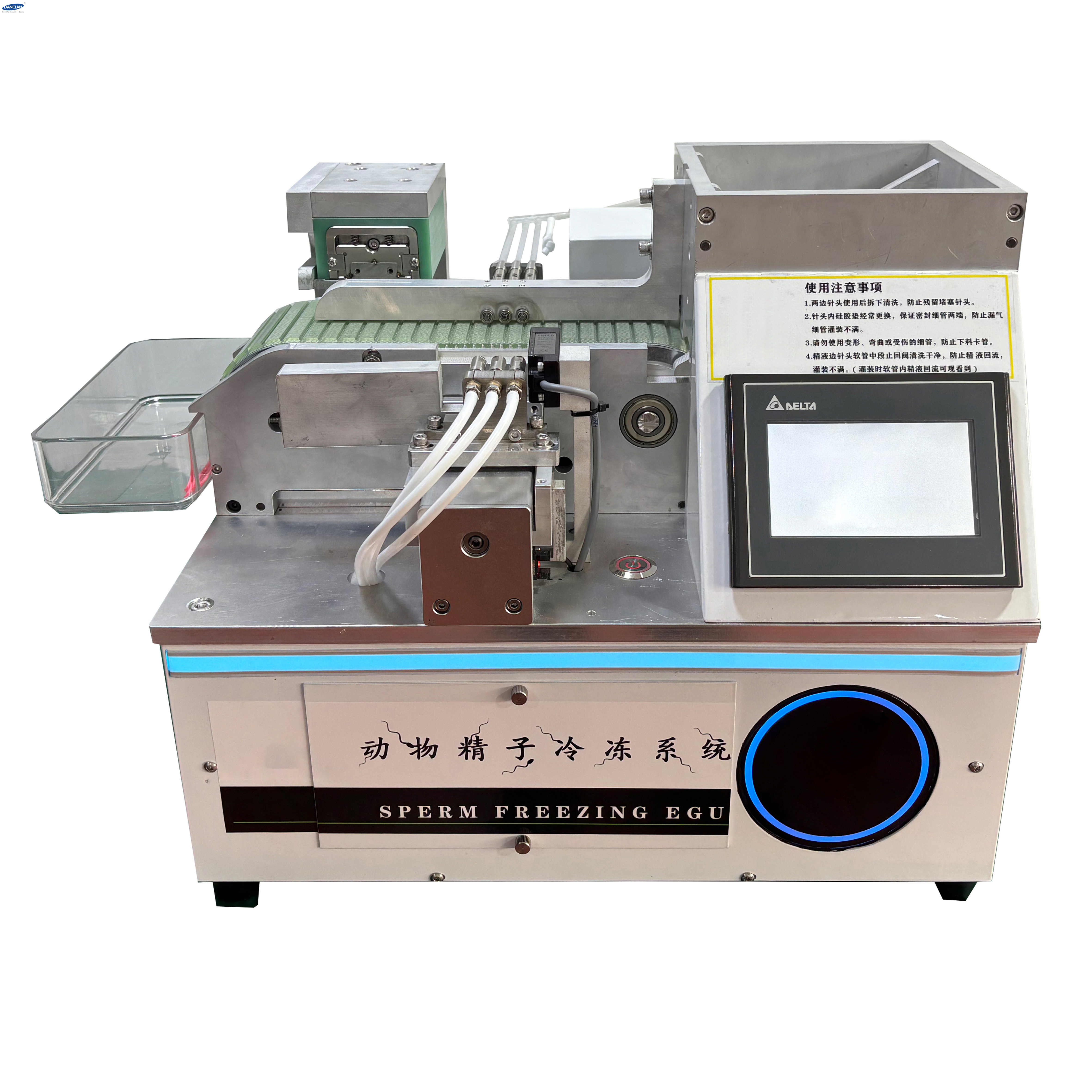

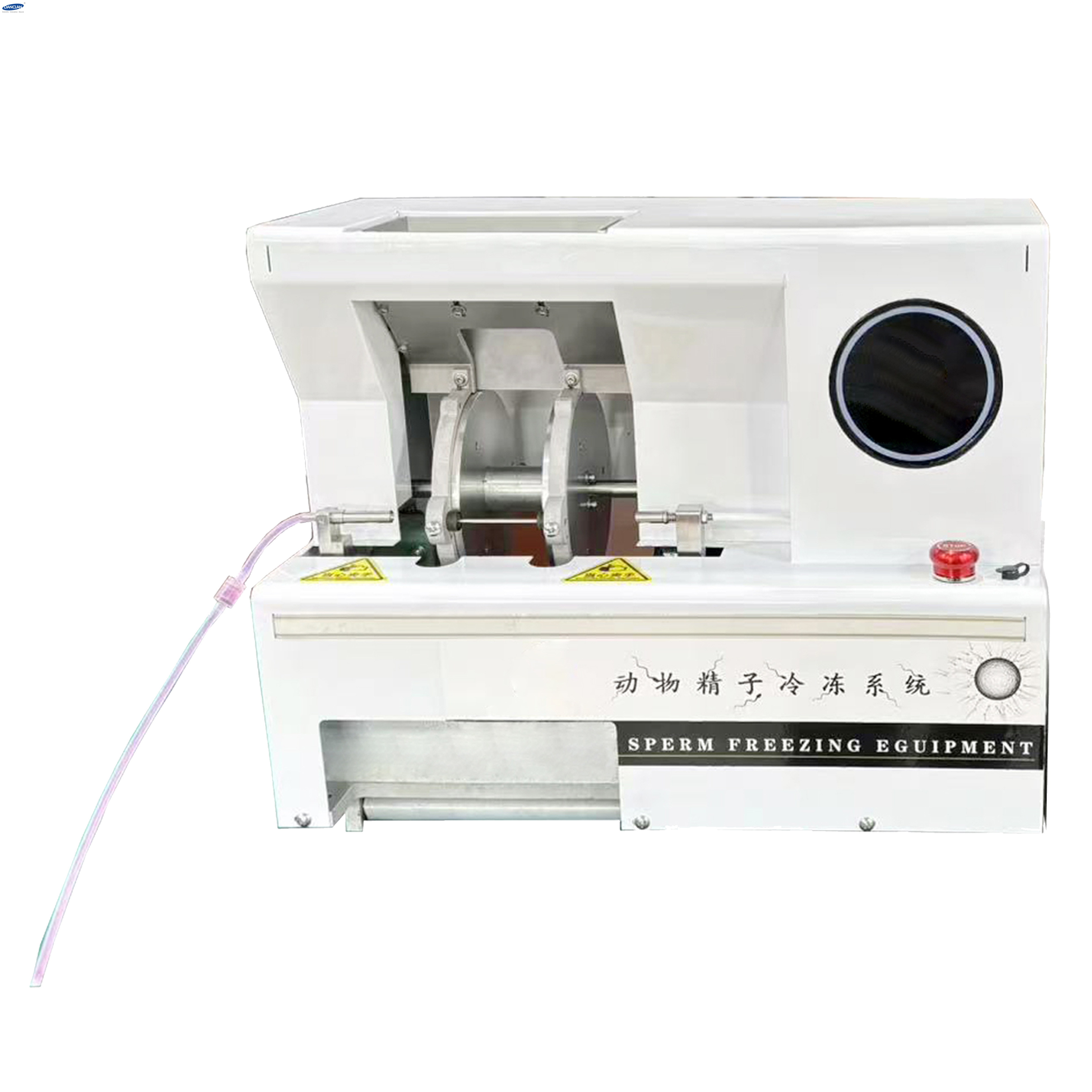

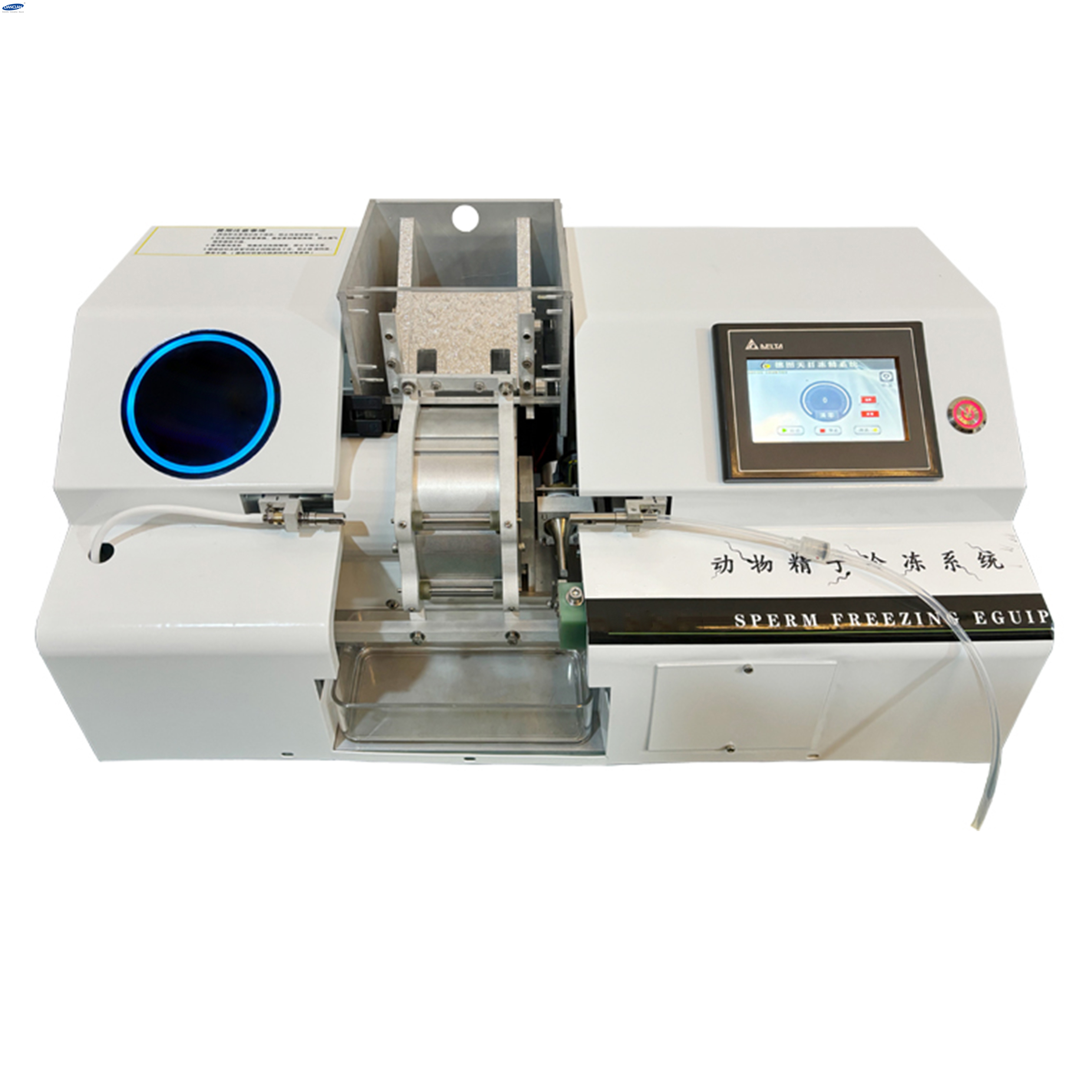

Animal Semen Straw Filling & Sealing Machine
Animal Semen Straw Filling & Sealing Machine. There are mechanical, electronic and fully automatic 1/2/3/4 needle options, easy to operate.It can provide convenience for your frozen animal semen, improve freezing efficiency and simple operation
Specifications:
| Model | Material | Number of vials filled /h | Number of needles | Display | Filling and Sealing Method | Dimensions | Module | Voltage(V/Z) | Optional vials | Weight/KG | Power/W |
| DTGZ-2000 | Aluminum alloy body, sheet metal paint shell | 2000 | 1 | / | Fully automatic | 45.5x18x39cm | / | 220V/50HZ | 0.25ml/ 0.5ml | 18 | 120 |
| DTGZ-3000 | Aluminum alloy body, sheet metal paint shell | 3000 | 1 | Touch screen, intuitive display | Fully automatic | 46x23x40cm | Imported PLC control brain | 220V/50HZ | 0.25ml/ 0.5ml | / | 360 |
| DTGZ-6000 | Aluminum alloy body, sheet metal paint shell | 6000 | 2 | Imported touch screen, intuitive display | Fully automatic | 43x34x36cm | Imported PLC control brain | 220V/50HZ | / | / | 360 |
| DTGZ-9000 | Aluminum alloy body, sheet metal paint shell | 9000 | 3 | Imported touch screen, intuitive display | Fully automatic | 43x34x36cm | Imported PLC control brain | 220V/50HZ | / | / | 360 |
| DTGZ-12000 | Aluminum alloy body, sheet metal paint shell | 12000 | 4 | Imported touch screen, intuitive display | Fully automatic | 43x34x36cm | Imported PLC control brain module | 220V/51HZ | / | / | 360 |
Equipment advantages
*The system automatically detects the remaining volume of semen. It stops dispensing thin straws automatically when there is no semen left, thus controlling the quantity of straws being released.
*The system automatically calculates the last straw and stops automatically after sealing.
*Simple operation interface, one-key start. One-key stop, easy to operate with or without experience
*Soft conveying platform, does not damage the straw, does not generate static electricity, and does not affect sperm vitality.
*Horizontal conveying mode, conveying straws, filling, and sealing are all on the horizontal conveying platform, which is more intuitive and convenient for observation and maintenance.
*Ultrasonic vibration and low-temperature sealing, no heating and no damage to sperm, ensuring 100% sealing.
Automatic reset function, each time the device is started, it automatically resets to ensure long-term use without error.
Individual needleless needle design, each needle is independent and can be replaced individually, without the need to disassemble and replace the entire set, and one needle is blocked without replacing the entire set of needles.
*The display shows the filling quantity and clearing function.
*System setting parameters, arbitrarily set the sealing length and thickness to meet different needs.
*Filling speed and filling time can be set arbitrarily.
*A pipe - cleaning function quickly clears unused straws from the funnel, transports them to the front drawer box. They can be reused without filling, sealing, or damage, avoiding waste.
*The design above the sealing mold prevents atomized semen from falling into it, eliminating semen buildup. No mold disassembly is needed for cleaning, reducing hassle and extending mold lifespan.
*Needleless quick-release needle, replace the needle in 3 seconds, and quickly fill the next portion of semen.
*Stainless steel quick-release needle, no tools required, simple maintenance, ergonomic design, easy to work.
*The whole machine does not require disposable consumables design, no need to replace wearing parts, reducing the cost of use.
