By 11 a.m. on a typical busy morning in an IVF lab, the same dewar may have been opened a dozen times. Each opening pulls warm air into the neck, drives off a small pulse of liquid nitrogen vapor, and adds a few degrees of heat to the vapor space above the samples. None of these events individually matters. In a lab running 25 cycles a week, they add up to real thermal load on vessels rated under static conditions.
That is the ordinary pressure. Vacuum failure operates on a different timescale entirely. A tank with a compromised vacuum layer can lose 20% of its liquid nitrogen in four hours with no alarm. The temperature sensor inside won't trigger until 5.5 to 6.5 hours after failure begins. For 90 to 150 minutes, samples are exposed and warming while the monitoring system reads normal.
In a survey of ART laboratories conducted by the Ovation Fertility research group, 51% of respondents reported experiencing at least one cryogenic storage tank failure. 23% experienced actual sample loss. One documented incident resulted in more than 4,000 patient samples destroyed. These were labs that had monitoring systems in place.
The tank decision is a system decision. Size and price per liter are the wrong starting points. The question is whether the vessel and its monitoring will still protect samples at 2 a.m. when something unexpected happens.
Modern IVF relies almost entirely on vitrification for embryo and oocyte cryopreservation. Vitrification uses high cryoprotectant concentrations and ultra-rapid cooling to solidify the cell into a glass-like state, bypassing ice crystal formation.
The critical temperature is -135°C. Below it, the vitrified cell exists in a stable glassy state with metabolism essentially suspended. Above it, devitrification begins: ice crystals can form and grow, and membrane damage follows within minutes. Liquid nitrogen storage at -196°C keeps samples roughly 60 degrees below that threshold in liquid phase, and around 30 to 50 degrees below it in vapor phase, depending on position in the vessel.
Storage failures are binary, not gradual. A sample that warms from -180°C to -130°C has crossed the glass transition boundary. The question at that point is not whether it was damaged. It is how much.
In controlled vacuum failure tests, a 20% evaporative loss was detectable by weight-based monitoring within four hours. The same event triggered a temperature alarm at 5.5 to 6.5 hours. The 90-to-150-minute gap between those two events is invisible to temperature-only monitoring.
Liquid nitrogen expands approximately 696 times in volume when it vaporizes. A 35-liter tank in full vacuum failure releases enough gas in a confined room to displace oxygen below safe breathing levels before any temperature alarm fires. The safety risk and the sample integrity risk are on the same clock.
In liquid-phase dewars, samples sit directly in liquid nitrogen at -196°C. The thermal mass of the liquid buffers against temperature spikes from lid opening, so thermal stability is good. The tradeoff is biosecurity. Liquid nitrogen can carry viral particles between samples in the same vessel. For labs storing samples from multiple patients in the same tank, liquid-phase immersion creates a documented cross-contamination pathway.
This design works for high-volume bulk storage where samples are in sealed cryovials with secondary containment and cross-contamination risk is managed through protocol rather than physical separation.
Vapor-phase tanks keep samples in the cold nitrogen vapor above the liquid surface, typically between -140°C and -190°C depending on vertical position. Samples never contact the liquid. Cross-contamination between patients stored in the same tank has no liquid-mediated pathway.
For IVF programs storing embryos and gametes, vapor-phase is the current accredited standard. It removes the biosecurity concern that liquid-phase immersion cannot fully resolve. Temperature is slightly less uniform across the vessel, which is why both monitoring position and liquid level matter more in vapor-phase storage than in liquid-phase.
When specimens need to move between clinics, collection facilities, or for patient-directed transfers, dry shippers are the right tool. These absorbent-core vessels hold no free liquid nitrogen and maintain cryogenic temperatures through nitrogen vapor released from the saturated matrix. They meet IATA P650 for air transport.
Dry shippers are not long-term storage. Hold time is typically 10 to 14 days depending on vessel size. Thermal performance should be verified with a temperature logger for any shipment taking more than a few hours.
Above 30 cycles per week, most clinics move to centralized bulk liquid nitrogen storage with auto-fill systems feeding multiple tanks through vacuum-jacketed transfer lines. Manual LN2 handling is the largest source of operator-driven risk in smaller setups. Auto-fill removes it.
It also introduces a different vulnerability: if the auto-fill controller fails, every connected tank can drain before the failure is detected. Monitoring architecture for auto-fill systems needs to track both the primary tank level and the fill event logs, separately.
Temperature probes alone are not adequate for IVF-level monitoring. The Ovation Fertility data makes the problem specific: there is a 90-to-150-minute window between when vacuum failure is detectable by weight and when a temperature alarm fires. During that window, vapor-phase temperatures can climb toward -135°C.
Three monitoring layers close that gap.
The first is dual temperature probes: one at the top of the vapor space, one at mid-vessel height. Two probes catch both abnormal vapor warming (the vacuum failure signature) and low-level events where the liquid surface has dropped below the sample racks. A single probe at one position misses one or the other.
The second is continuous weight monitoring via a platform scale under the vessel. A scale with cloud logging detects evaporation rate changes hours before any temperature alarm triggers. A sudden increase in daily weight loss is a vacuum failure signal even when the temperature probe reads normal. This layer is the one that closes the detection gap.
The third is a dedicated liquid nitrogen level sensor giving actual LN2 depth in centimeters, separate from temperature. In vapor-phase tanks, the level determines which samples are above the liquid surface and in what temperature zone. Actual depth tells you whether you have hours or days before intervention is needed.

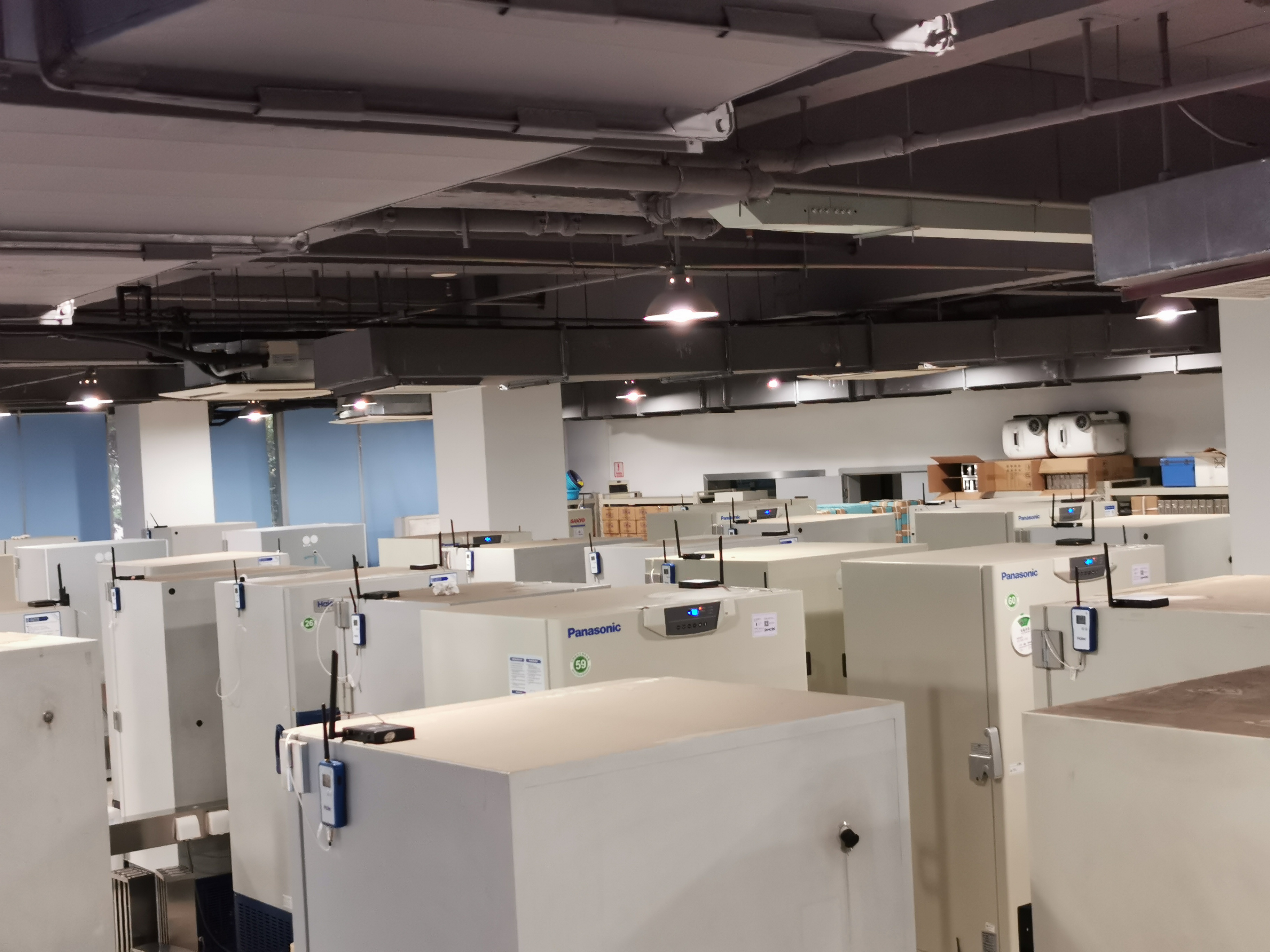

Kirin Cloud integrates temperature, liquid level, and remote alerting on a single platform, with multi-channel notification reaching whoever is on call rather than whoever happens to be in the building.
Fixed oxygen sensors in LN2 storage rooms are both a safety requirement and a CAP accreditation requirement (RLM.03940). Sensors should be positioned at 4 to 5 feet above floor level, where breathing-height air displaces first. Alarm threshold is 19.5% O2. Monthly testing is the CAP minimum. LN2 expanding 696 times in volume in a standard lab room can bring oxygen to dangerous levels faster than symptoms become noticeable.
An alarm that fires locally in an empty building does nothing. The alert architecture for an IVF lab needs a UPS backup of at least four hours, and outbound alerting through at least two independent channels: phone call and SMS at minimum, app push as a third. The on-call contact list should be reviewed quarterly. Response time expectations by event type should be written down before an event, not decided during one.
Frequency | Task | Why it matters |
|---|---|---|
Daily | Visual inspection using LIFES (Leakage, Ice, Frost, Evaporation, Sounds) | Catches early vacuum failure before NER test is needed |
Daily | Verify monitoring system status and alarm connectivity | Confirms alert path is live |
Weekly | Dipstick or level sensor fill check, refill if below 1/3 capacity | Prevents low-level events between auto-fill cycles |
Weekly | Review monitoring data logs for anomalous evaporation | Trend detection beats single-point inspection |
Monthly | Test oxygen sensors against calibrated reference | Sensors drift; monthly testing is CAP minimum |
Monthly | Review and update on-call contact list | Staff changes make stale contact lists a common failure mode |
Quarterly | NER weight test for each vessel | Quantifies vacuum integrity; catches gradual degradation |
Quarterly | Emergency response drill | Procedural knowledge degrades; drills cost one hour, failures cost samples |
Annual | Full equipment inventory audit with IQ/OQ documentation review | Required for CAP RLM.03944; also catches undocumented configuration changes |
Annual | Reassess tank age and replacement timeline | Dewars rated 8 to 10 years; aging tanks need proactive planning |
Supply disruption is an underplanned risk. A clinic relying on weekly cylinder delivery has a 7-day exposure window if a delivery fails. Keep a backup cylinder on-site, establish a second supplier relationship before you need it, and set fill alerts with enough lead time to arrange emergency supply.
Bulk supply via vacuum-jacketed transfer lines eliminates most cylinder-delivery risk and introduces a different one: if the bulk tank or transfer line fails, multiple storage vessels are affected at once. The bulk supply system needs the same monitoring attention as individual dewars.
A 35 to 50-liter vapor-phase dewar is typically sufficient for active patient samples, with a second vessel as backup. Manual LN2 management with weekly fill checks is workable if protocols are followed consistently. Wireless monitoring with level and temperature sensing is appropriate; continuous weight monitoring is optional but low-cost to add.
The most common failure mode at small-clinic scale is not equipment failure. It is protocol drift. Staff handle fewer tanks less frequently, and it becomes easier to skip steps. Weekly LIFES checks need to be logged, not just performed.
A single active storage vessel is not adequate at this volume. The standard configuration is at least two vapor-phase tanks for active samples (primary and warm backup), a separate long-term archive vessel, and a dry shipper inventory for patient transfers. Auto-fill starts making sense at the upper end of this range.
Monitoring should be cloud-based with automated daily reports and threshold alerts. If a lab at this volume is still using manual paper logs for fill records, that is a compliance exposure worth fixing before the next CAP inspection.
Above 30 cycles per week, the configuration becomes a system. Centralized bulk LN2 supply with auto-fill, multiple redundant storage tanks, three-layer monitoring on every vessel, and at least one independent backup vessel not connected to the auto-fill circuit. That last point matters specifically because it protects against auto-fill controller failure rather than just tank failure.
Anomalies that take weeks to surface at a small clinic show up in days at this volume, if anyone is reviewing the data. A dedicated monthly quality review of monitoring logs is not optional at this scale.
Labs preserving fertility samples for cancer patients work under a different set of constraints. Samples are often unique and irreplaceable. Patients may be in active treatment that prevents re-collection. Storage timelines can run for decades. The standard IVF storage setup is not automatically adequate here.
Mandatory requirements at this level include dedicated isolation vessels rather than co-storage with the IVF population; full IQ/OQ/PQ validation documentation for each vessel; redundant off-site storage or mutual aid agreements with another facility; and compliance with tissue banking regulations alongside IVF accreditation standards.
Manufacturer-stated static evaporation rate (SER) should be verified against independent test data. Ask for test certificates, not just the spec sheet. If they do not exist, treat the stated SER as a claim.
In a vapor-phase tank, temperature varies significantly by vertical position. Ask for a temperature distribution map at operating LN2 level showing actual temperatures at rack positions. "Temperature is uniform throughout" is not an answer.
Neck diameter is a real operating variable. A wider neck is more convenient but drives higher evaporation. The difference between 50mm and 125mm can reduce static hold time from 180 days to 40 days. Quantify your expected daily access frequency before specifying it.
Confirm sensor compatibility with your monitoring hardware before purchase. Discovering incompatibility after delivery is an expensive problem with no good solution.
Read the vacuum warranty before signing. Most dewars carry a 3 to 5-year vacuum warranty. Know whether it covers repumping or replacement, what voids it, and what the actual service process looks like.
A vendor who cannot produce IQ/OQ validation documentation either has not prioritized clinical IVF applications or is selling a product that has not been properly qualified. For IVF use, validation documentation is a requirement.
A vendor who presents temperature-only monitoring as sufficient for IVF storage has either not read the published detection timing data or is choosing not to address it. The 90-to-150-minute detection gap is documented. Ask them directly how their system handles it.
A vendor selling to IVF labs who does not distinguish between liquid-phase and vapor-phase biosecurity risk has not thought through the clinical use case. This is a basic differentiation for reproductive medicine applications.
A vendor who does not ask about your backup vessel plan does not understand your compliance environment. CAP RLM.03944 requires contingency planning for storage failure. If they do not raise it, they are not familiar with the accreditation requirements you are working under.
Specification | What to ask | Red flag |
|---|---|---|
SER documentation | "Can you provide independent test data for stated SER?" | Spec sheet only, no test certificate |
Vapor temperature map | "Can you provide temperature distribution data at operating level?" | "Temperature is uniform throughout" |
Neck geometry | "What is the SER difference between neck diameter options?" | No quantified answer |
Monitoring compatibility | "Which level and temperature sensors are validated for this vessel?" | No answer or "any sensor works" |
Validation package | "What IQ/OQ documentation is available?" | "We can help you write one" |
Vacuum warranty | "What does the warranty cover and what is the service process?" | Parts-only warranty, no repumping provision |
Vapor phase or liquid phase for IVF embryo storage? Vapor phase is the current standard for IVF embryo and oocyte storage in most accredited programs. The reason is biosecurity: liquid phase immersion creates a cross-contamination pathway between samples from different patients stored in the same vessel. Vapor phase removes that pathway. Temperature is slightly less uniform in vapor phase, which is why monitoring position and liquid level matter more there.
How do I calculate the right tank capacity for my lab? Start with your current patient sample inventory, add anticipated new volume for 12 months, and build in 30% headroom. Plan for a second vessel as backup. A mid-volume clinic at 15 cycles per week typically runs two 35 to 50-liter vapor-phase tanks for active samples and one 100-liter vessel for long-term archive. Calculate storage positions based on your actual sample packaging (straws, canes, goblets), not just raw liter capacity.
What does a three-layer monitoring system need to include? Layer one is dual temperature probes at the top and mid-vessel. Layer two is continuous weight monitoring via platform scale, which detects evaporation rate changes 90 to 150 minutes before temperature alarms trigger. Layer three is a dedicated liquid nitrogen level sensor giving actual LN2 depth in centimeters. All three feed into a cloud platform with multi-channel remote alerting. Temperature monitoring alone leaves the documented detection gap open.
What should a mid-volume IVF clinic (10 to 30 cycles per week) buy? At minimum: two vapor-phase tanks for active samples (primary and warm backup), one long-term archive vessel, a dry shipper inventory for transfers, and cloud monitoring with level, temperature, and remote alerting on each vessel. At the upper end of this volume range, evaluate whether auto-fill pays for itself given your LN2 consumption and the staff time going into manual management.
What questions should I ask a cryogenic storage vendor before buying? Ask for independent SER test data, a vapor temperature distribution map at operating liquid nitrogen level, documentation of what the vacuum warranty covers, an IQ/OQ validation package, and their recommended monitoring hardware. If they cannot answer all five, they either do not specialize in clinical IVF or have not done the qualification work your accreditation requires.
Every IVF lab has a moment when the monitoring system matters more than any written protocol: the overnight vacuum failure, the supplier delay, the temperature excursion on a Saturday. Choosing storage infrastructure is deciding how that moment goes.
Vapor-phase design, three-layer monitoring with weight as the early detection signal, a maintenance cadence built around catching degradation before it becomes a crisis, and a backup vessel genuinely independent of the primary system. Those are the variables that hold when everything else fails.
Danclan's vapor-phase liquid nitrogen tanks are designed for IVF clinical applications, with documented SER data and direct compatibility with the Kirin Cloud Wireless Monitoring platform. Kirin Cloud covers temperature, liquid level, and multi-channel remote alerting in a single system built for unattended overnight monitoring.
